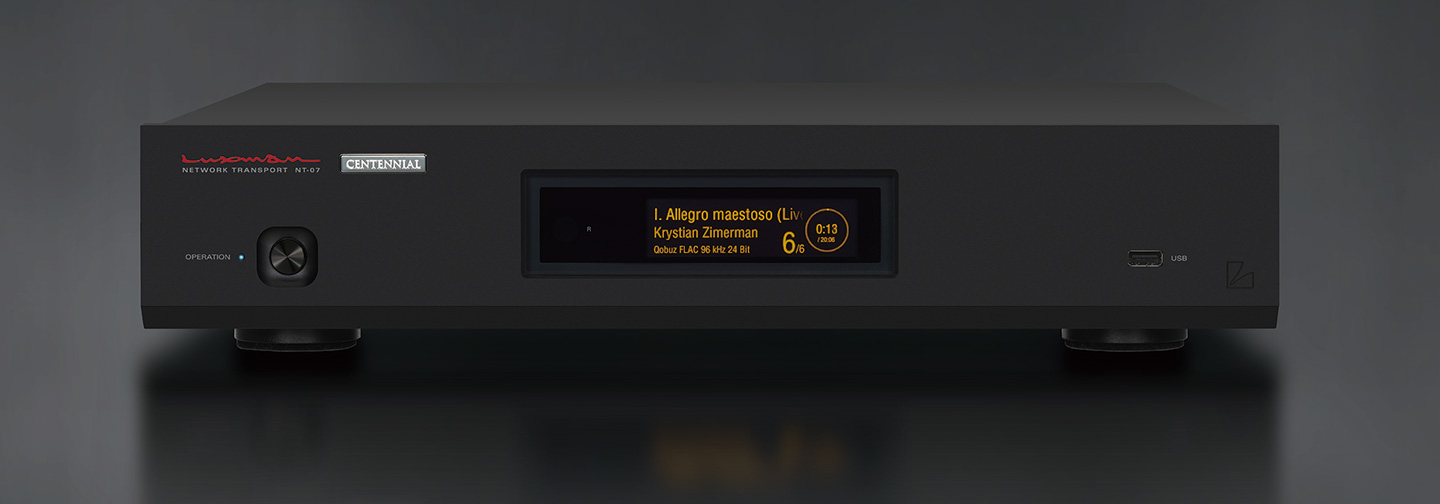

100th Anniversary Limited Edition

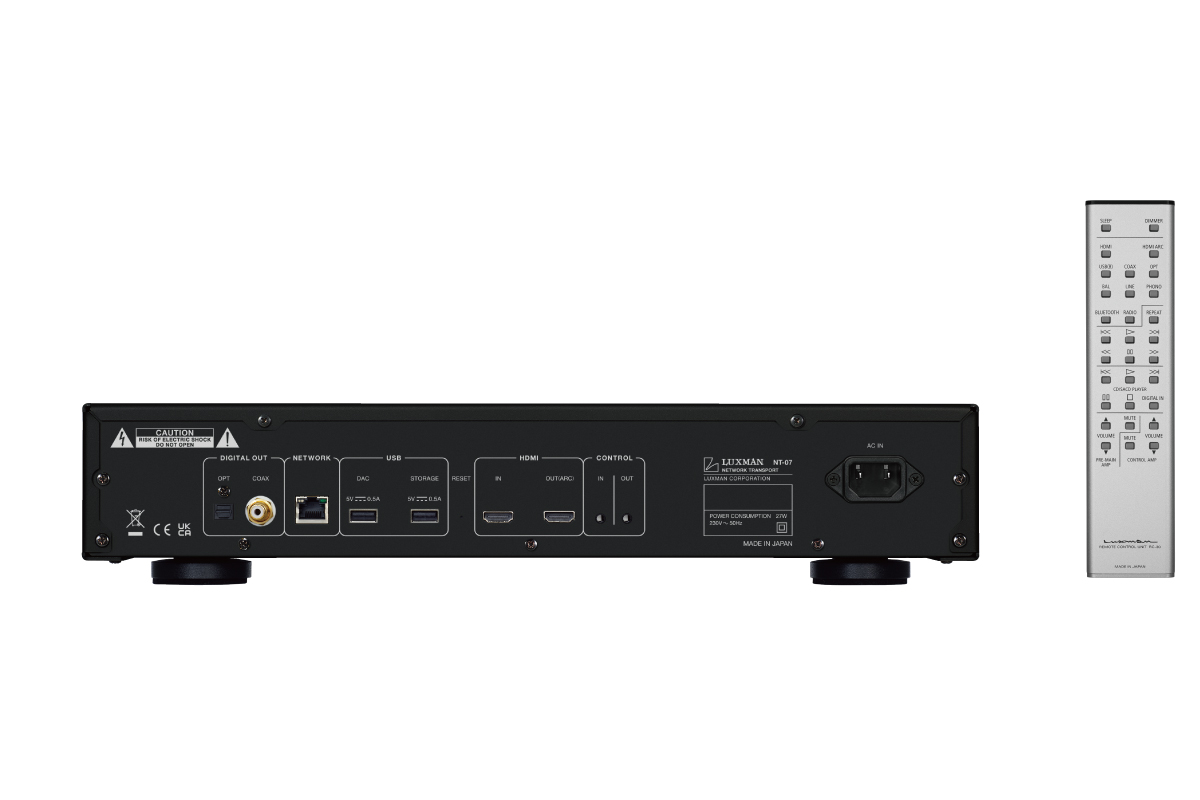

| Digital input | Network : 1000 Base-T (gigabit · ethernet) HDMI : PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported |
|---|---|
| Digital output | USB (USB2.0), OPT, COAX HDMI : PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported |
| Storage connection | USB x 2 terminals (USB2.0, single partition, FAT32, exFAT, NTFS) |
| Supported sampling frequencies | USB : PCM 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit) DSD : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit) COAX / OPT / HDMI (ARC) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 24-bit) |
| Corresponding format formats | WAV, AIFF, FLAC, ALAC, MQA, MP3, AAC, DSD (DSF, DFF) |
| Streaming protocols | UPnP (OpenHome), TIDAL Connect, Spotify Connect, Roon Ready |
|---|---|
| Power supply | 230 V～(50 Hz) / 115 V～ (60 Hz) |
| Power consumption | 27 W (HDMI in/output when connected to USB storage) 5.9 W (HDMI in/output when USB storage is disconnected) |

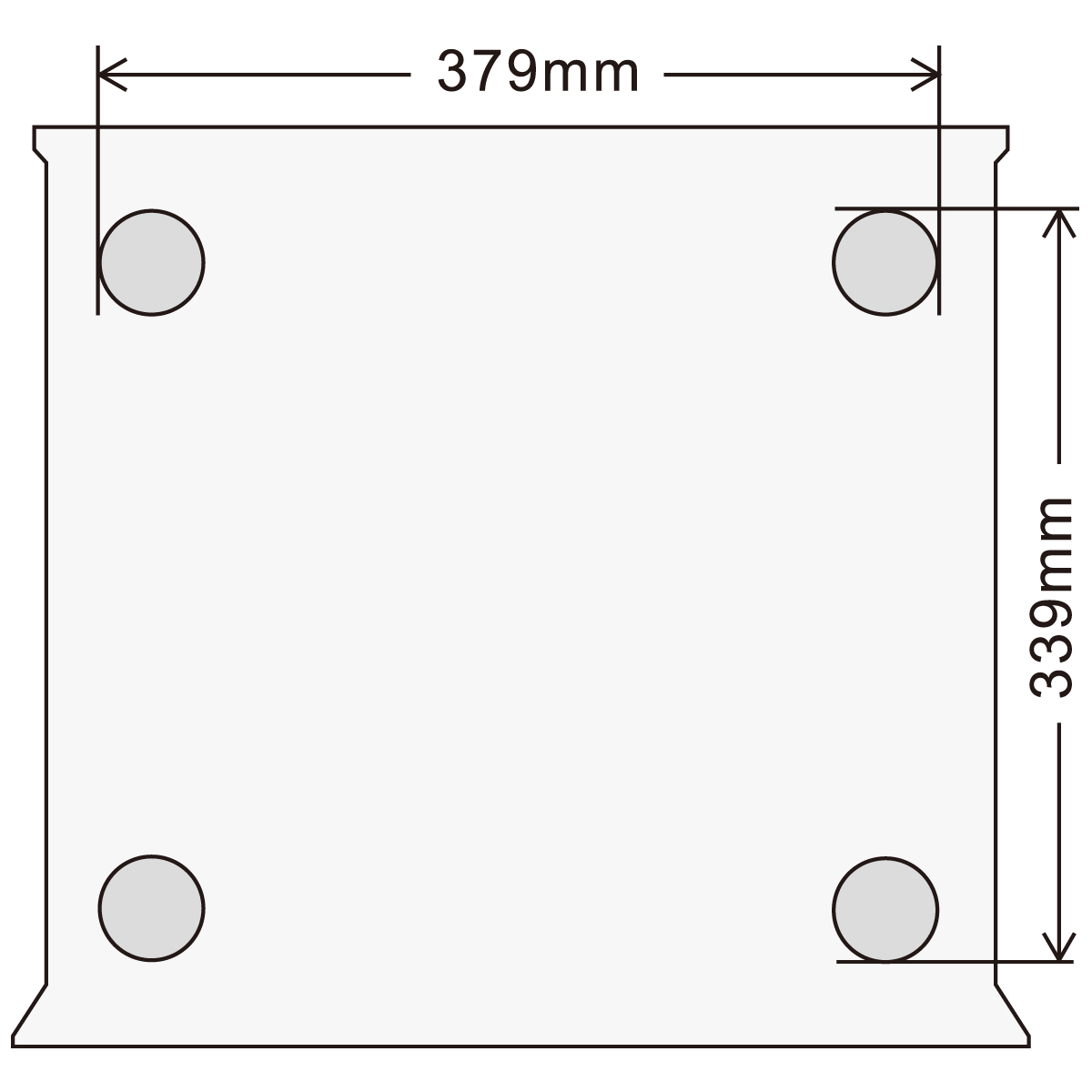

| Dimensions | 440(W) x 92(H) x 398(D) mm front side display of 3 mm and rear side terminal of 13 mm included in depth |
| Net weight | 10.3 kg (main unit) |
| Accessories | Remote control (RC-30), Power cable |
| Digital input |
|---|
| Network : 1000 Base-T (gigabit · ethernet) HDMI : PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported |
| Digital output |
| USB (USB2.0), OPT, COAX HDMI : PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported |
| Storage connection |
| USB x 2 terminals (USB2.0, single partition, FAT32, exFAT, NTFS) |
| Supported sampling frequencies |
| USB : PCM 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit) DSD : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit) COAX / OPT / HDMI (ARC) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 24-bit) |
| Corresponding format formats |
| WAV, AIFF, FLAC, ALAC, MQA, MP3, AAC, DSD (DSF, DFF) |
| Streaming protocols |
|---|
| UPnP (OpenHome), TIDAL Connect, Spotify Connect, Roon Ready |
| Power supply |
| 230 V～(50 Hz) / 115 V～ (60 Hz) |
| Power consumption |
| 27 W (HDMI in/output when connected to USB storage) 5.9 W (HDMI in/output when USB storage is disconnected) |
| Dimensions |
| 440(W) x 92(H) x 398(D) mm front side display of 3 mm and rear side terminal of 13 mm included in depth |
| Net weight |
| 10.3 kg (main unit) |
| Accessories |
| Remote control (RC-30), Power cable |
